1967 - 1969 Camaro Manual Steering Pitman Arm, 5-1/4 Inch
1967 - 1969 Camaro Manual Steering Pitman Arm, 5-1/4 Inch

Our Price: $79.95


PART NUMBER: SUS-30
Qty:

Description

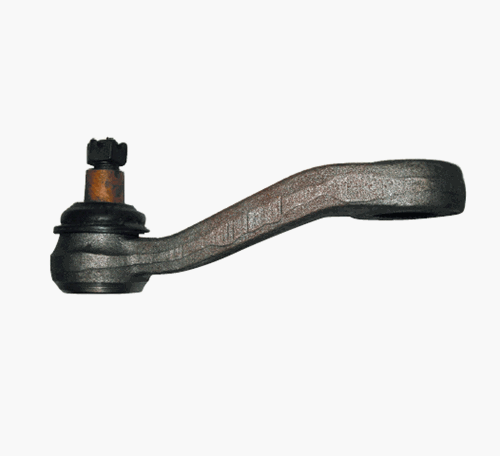

1967 - 1969 Camaro Manual Steering Pitman Arm, 5-1/4 Inch

New premium quality 1967, 67, 1968, 68, 1969 and 69 Camaro Pitman Arm for manual steering cars. Measures 5-1/4 inch center to center. This Pitman Arm connects to the manual steering box and the center drag link on the LH (Driver Side) to move the wheels when you steer. The joint on the Pitman Arm can become worn out over time making for sloppy steering.

  • Stud Dia. Small End Of Taper: 0.589
  • Sector Shaft Diameter: 1.125
  • Sector Shaft Spline Large Inner Diameter: 1.024
  • Length Center to Center: 5.25
  • Key Way (Male or Female): Male
  • Off Set: Down
  • # of Splines: 32
  • Hardware Included: Yes
  • Arm Type: Bent
  • Arm Fixture: Stud
  • Arm Fixture Stud Thread/Hole Inside Diameter: 1/2-20
  • Greasable: Yes

Replace your old original Pitman Arm today with this new quality one from Camaro Central.

PART NUMBER: SUS-30
