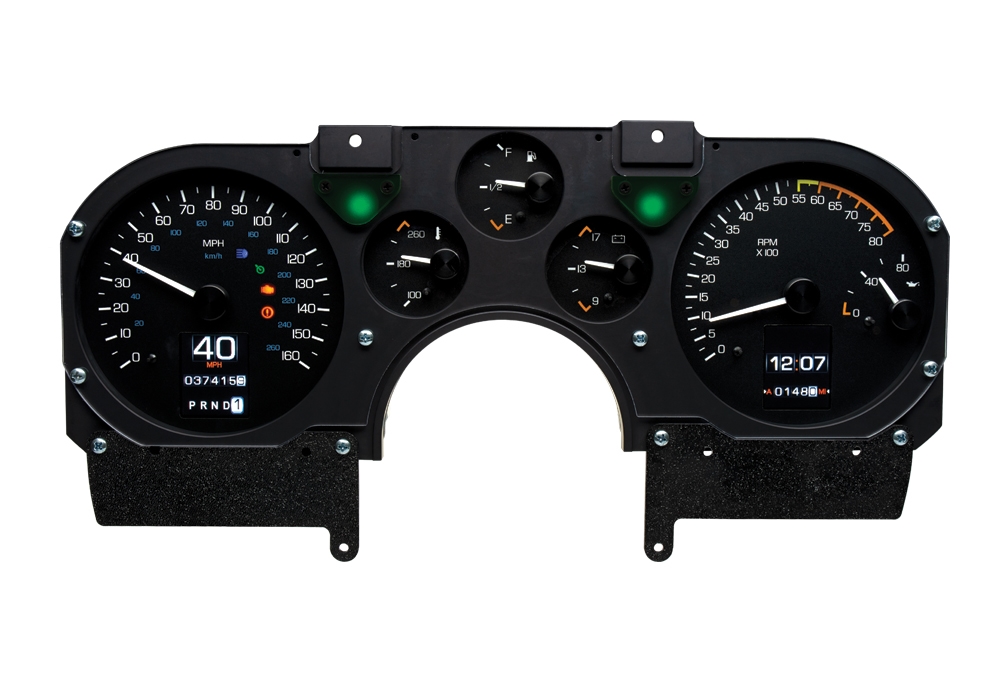

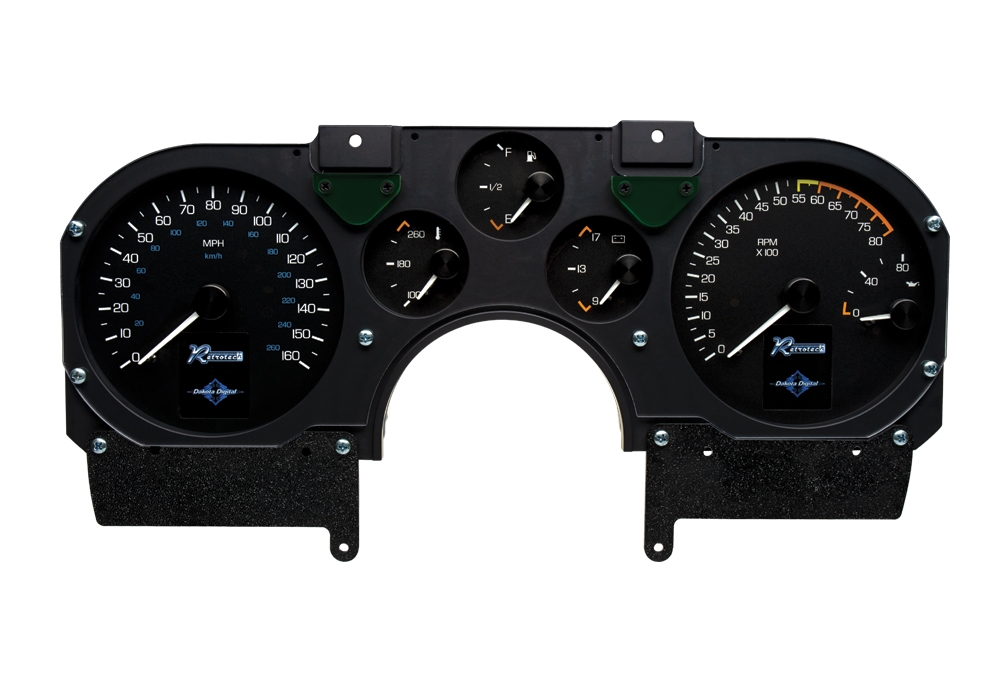

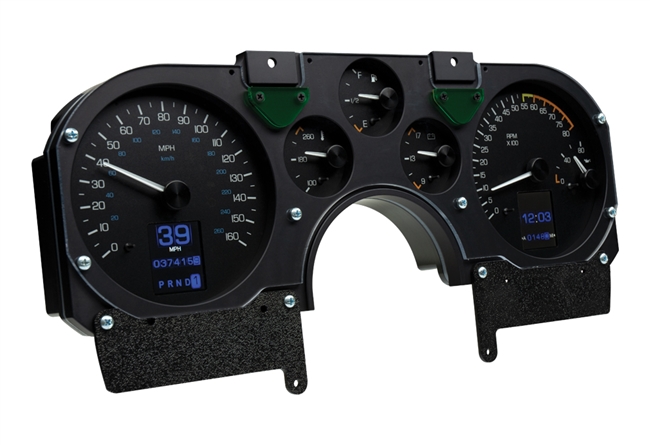

Analog Gauges Specifications

Primary Gauges

• Speedometer:
  • 0–160 MPH (Optional metric version: 0–240 km/h)
• Tachometer:
  • 0–8,000 RPM
• Oil Pressure:
  • 0–80 PSI
• Water Temperature:
  • 100–260°F (Optional metric version: 40–120°C)
• Fuel Level:
  • E, 1/4, 1/2, 3/4, F
• Voltmeter:
  • 9–17 VDC

Digital Message Centers

Standard Displays

• Odometer: One-time user settable (Million Mile)
• Dual Trip Meter (A/B): 0–9,999.9
• Clock: 12-hour format
• Estimated Range / Miles to Empty

Performance Meters

• 0–60 MPH Timer (0–100 km/h)
• 1/4 and 1/8 Mile Time
• 1/4 and 1/8 Mile End Speed (Trap Speed)
• High-Speed Recall
• High RPM Recall

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/Engaged when equipped)
• Gear Position (Requires optional GSS-3000 sensor)
• 4x4 Indicator (When equipped)
• Wait to Start (When equipped)
• Two Auxiliary Input Indicators with User-Programmable Labels
• Red LED Warning Indicators:
  • Each gauge sweep (except the speedometer) includes a red LED for quick warning alerts.

Note: Not all OEM indicator lamp functions are replaced. Unused indicators can be repurposed for custom applications.

Lighting Technology

Color Options

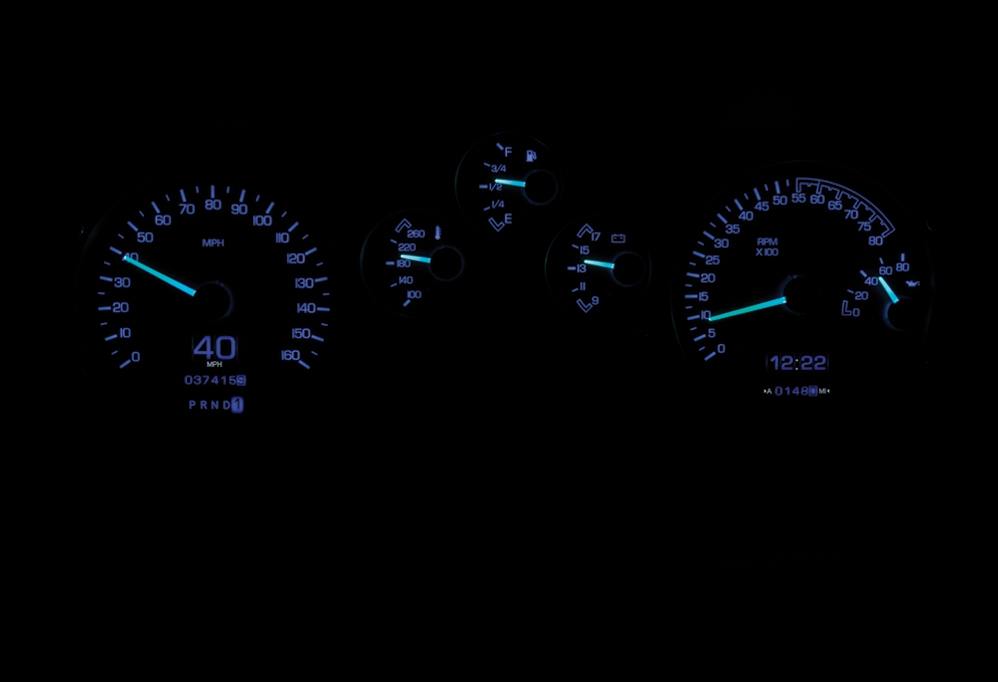

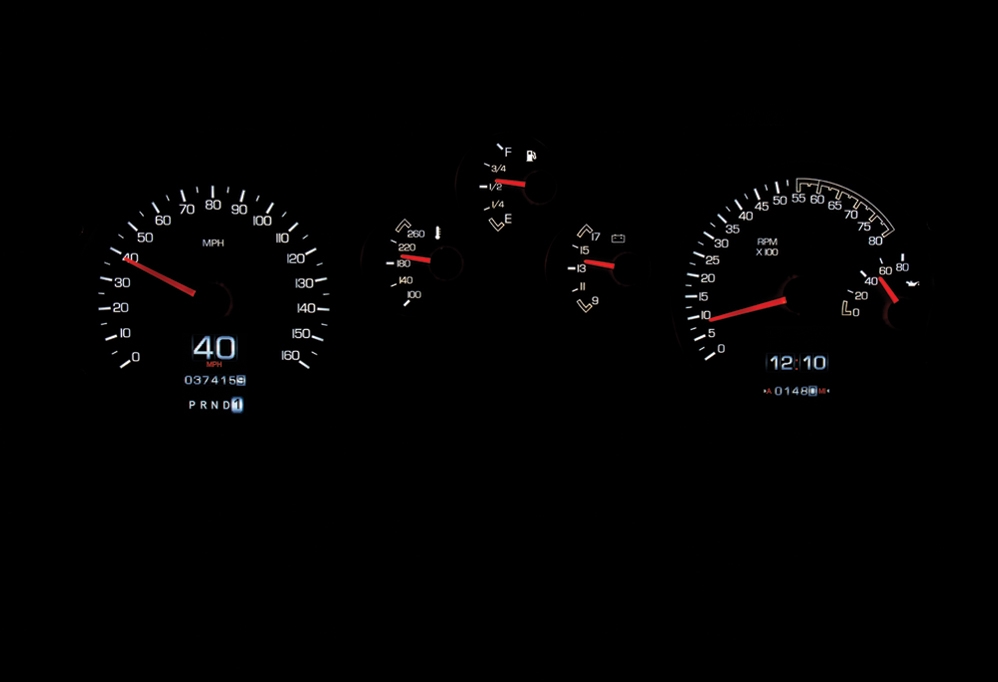

• Over 30 user-selectable colors allow independent customization for:
  • Needle Color
  • Sweep Color
  • Digital TFT Display Color

Brightness Control

• Adjustable daytime and nighttime brightness via the RTX setup menu.
• Headlight switch toggles between day/night modes.
• Optional DIM-1 accessory allows rotary-style brightness control.

Themes

• 12 factory preset color themes for quick setup.
• Full customization available for independent color zone control.

Technology

• Full LED backlighting for high contrast and sharp visuals day and night.
• RGB backlighting enables complete color customization.
• Separate daytime and nighttime themes are available.

Included Sensors

• Water Temperature Sensor:
  • 1/8" NPT, ground-isolated, with 10 ft harness
• Oil Pressure Sensor:
  • 1/8" NPT solid-state sensor with 10 ft harness
• Cable-Driven Speed Sensor/Generator:
  • Replaces GM-style speedometer cables with 10 ft harness
  • Requires approximately 5" clearance between cable drive output and any obstruction
  • Optional Part #130011: Allows sensor relocation for additional clearance (Tremec and Ford adapters available upon request)
• Bushings:
  • Includes 1/8" to 1/4", 3/8", and 1/2" NPT bushings
  • Includes bushings for 12mm and 16mm x 1.5 thread sizes

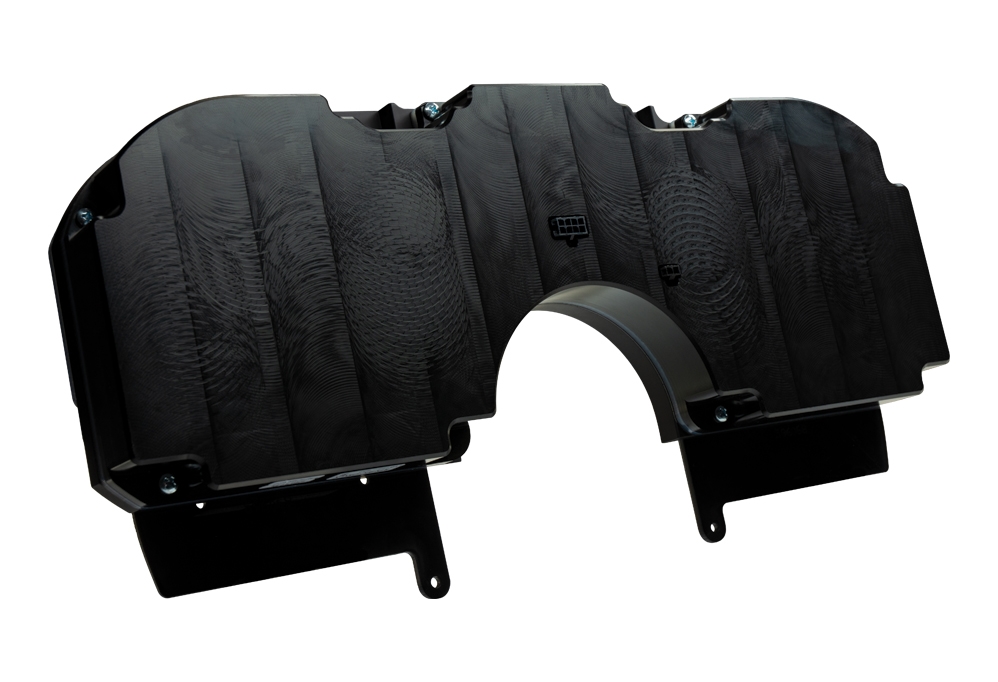

Control Box Dimensions

• 5.5" x 3.5" x 1"

Calibration and Use

Pushbutton Control

• System setup and operation via the included two-sided rocker switch.
• Mount the switch for easy driver access.
• Feedback is displayed in the TFT Message Center or via the included buzzer.
• After setup, the switch accesses digital message centers in driving mode.

Mobile App

• Complete system configuration using the free mobile app (iOS/Android compatible).
• Sync via Bluetooth for easy menu navigation and real-time diagnostics.

Calibration

• Speedometer and fuel level calibration require a simple button-press process and a short test drive.
• GPS Option (GPS-50-2): Eliminates the need for speedometer calibration.
